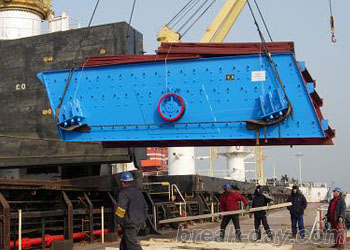

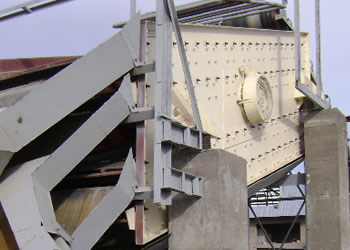

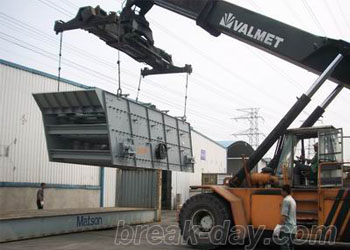

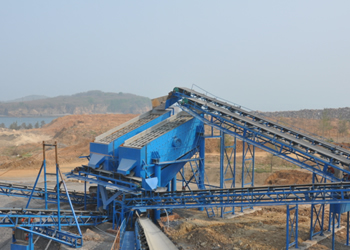

YZS Vibrating ScreenCircular Vibrating Screen is used to separate materials into various sizes for further process. The seperated materials can be used in building industry, construction industry, mining, water conservancy and hydropower, stone industry, etc.
Working Principle
Circular Vibrating Screen uses common motor to drive vibrator and make the screen do periodic movement. The materials make circular movement on the screen to be seperated.
Features
High strength screw bolts are used;
High seperating efficiency and large capacity;
Simple structure and easy maintenance;
Long life span, low consumption and little noise;
Model |
Screen Size (LxW) (mm) |
Layers |
Screen Mesh (mm) |
Max. Feed Size (mm) |
Capacity (t/h) |
Power (Kw) |
Vibrating Frequency (r/min) |
Double Amplitude (mm) |
2YZS1237 |
3700×1200 |
2 |
3-100 |
400 |
10-80 |
11 |
750-950 |
5-9 |
3YZS1237 |
3700×1200 |
3 |
3-100 |
400 |
10-80 |
11 |
750-950 |
5-9 |
2YZS1548 |
4800×1500 |
2 |
3-100 |
400 |
30-200 |
15 |
750-950 |
5-9 |
3YZS1548 |
4800×1500 |
3 |
3-100 |
400 |
30-200 |
15 |
750-950 |
5-9 |
2YZS1848 |
4800×1800 |
2 |
3-100 |
400 |
50-250 |
18.5 |
750-950 |
5-9 |
3YZS1848 |
4800×1800 |
3 |
3-100 |
400 |
50-250 |
18.5 |
750-950 |
5-9 |
4YZS1848 |
4800×1800 |
4 |
3-100 |
400 |
50-250 |
18.5 |
750-950 |
5-9 |
2YZS1860 |
6000×1800 |
2 |
3-100 |
400 |
65-586 |
22 |
750-950 |
5-9 |
3YZS1860 |
6000×1800 |
3 |
3-100 |
400 |
65-586 |
22 |
750-950 |
5-9 |
4YZS1860 |
6000×1800 |
4 |
3-100 |
400 |
65-586 |
30 |
750-950 |
5-9 |
2YZS2160 |
6000×2100 |
2 |
3-100 |
400 |
81-720 |
22 |
700-900 |
5-9 |
3YZS2160 |
6000×2100 |
3 |
3-100 |
400 |
81-720 |
30 |
700-900 |
5-9 |
4YZS2160 |
6000×2100 |
4 |
3-100 |
400 |
81-720 |
30 |
700-900 |
5-9 |
2YZS2460 |
6000×2400 |
2 |
3-150 |
400 |
100-810 |
30 |
700-900 |
5-9 |
3YZS2460 |
6000×2400 |
3 |
3-150 |
400 |
100-810 |
37 |
700-900 |
5-9 |
4YZS2460 |
6000×2400 |
4 |
3-150 |
400 |
100-810 |
37 |
700-900 |
5-9 |
