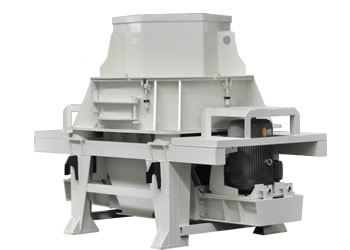

PCL Sand Making MachineBrief introduction
PCL sand making machine absorbs advanced technology of the same products of liming Company in America. PCL sand making machine is mainly used to crush hard and medium hard stones in stone mining, metallurgy industry, building material, highway, railway, stone industry, cement, etc.
Features
Simple structure and high crushing ratio with low consumption;
More suitable for crushing mid-hard and hard materials;
Cubic shape of final products;
Slightly influenced by moisture content of material;
Low iron pollution;
More wearable and easier maintenance;
Low working noise (lower than 75 db) and light dust pollution;
Technical Data
PCL sand making machine absorbs advanced technology of the same products of liming Company in America. PCL sand making machine is mainly used to crush hard and medium hard stones in stone mining, metallurgy industry, building material, highway, railway, stone industry, cement, etc.
Features
Simple structure and high crushing ratio with low consumption;
More suitable for crushing mid-hard and hard materials;
Cubic shape of final products;
Slightly influenced by moisture content of material;
Low iron pollution;
More wearable and easier maintenance;
Low working noise (lower than 75 db) and light dust pollution;
Technical Data
Model |
Rev. of Impeller (mm) |
Max. Feed Size (mm) |
Capacity (t/h) |
Power (Kw) |
Weight (t) |
Overall Dimension (L×W×H) (mm) |
PCL600 |
2000-2600 |
30 |
10-30 |
2×30 |
5.6 |
2800×1550×2030 |
PCL750 |
1600-2100 |
35 |
30-50 |
2×45 |
7.5 |
3300×1800×2440 |
PCL900 |
1300-1700 |
40 |
50-80 |
2×55 |
12 |
3750×2120×2660 |
PCL1050 |
1100-1450 |
45 |
70-120 |
2×110 |
16 |
4480×2450×2906 |
PCL1250 |
950-1200 |
45 |
80-150 |
2×132 |
22 |
4563×2650×3176 |
PCL1350 |
800-1200 |
50 |
120-200 |
2×160 |
26 |
5340×2940×3650 |
