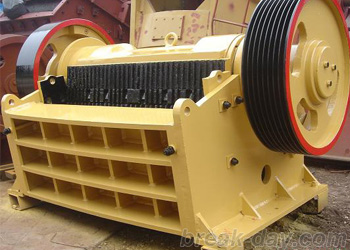

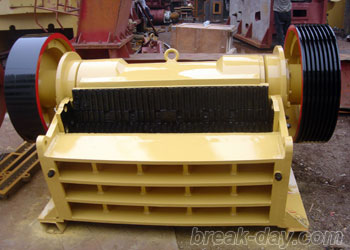

JCE Jaw CrusherBrief introduction
Nowadays, JCE series jaw crusher of European style is explored on the base of the traditional jaw crusher. The highest antipressure strength of material to be crushed is 320 MPa. It is mainly used to crush hard and medium hard stones in stone mining, metallurgy industry, building material, highway, railway, stone industry, etc.
Working principle
The motor drives belt and belt wheel, when movable jaw plate is driven towards fixed jaw plate, material is crushed or ground. Motor drives the movable jaw up and down through eccentric shaft. The angle between toggle plate and movable jaw increases when movable jaw moves up. The stones are crushed in this process. The angle between toggle plate and movable jaw decreases when movable jaw moves down, the movable jaw move away from fixed jaw by the pulling of rode and spring, the stuff crushed will be discharged from the output opening. This process will repeat. The moving jaw will crush and discharge the stuff circularly.
1. World-level manufacturing technology is adopted, perfect raw material is selected.
2. More advanced movable jaw assembly lengthens life of JCE.
Movable jaw assembly, composed of high-quality cast steel structure, is driven by two big flying wheels which is also made from cast steel. Moreover, heavy eccentric axle is processed by forge mold. All of these make the JCE series jaw crusher extremely reliable.
3. Integral cast steel structure is adopted for bearing seat.
Integral cast steel bearing matches well with the crusher frame, at the same time, radial strength of the bearing seat is highly strengthened. However, the separate bearing seat does not have this advantage.
4. Finite element analysis technology is adopted to make the crusher more stronger.
5. Crusher chamber adopts “V”structure which could make the actual feed width complies with the nominal one.
6. Adjustment of the discharge part is more convenient.
Discharge part of JCE series jaw crusher is installed wedge block, which makes discharge more simple, safer and faster than the spacer on old style crusher.
7. Bearing with larger specification and stronger bearing capacity is used.
All JCE series jaw crusher is installed eccentric bearing which is much bigger and more reliable than the one on the same model crusher. Higher bearing capacity and effectual maze sealing lengthen bearing life.
8. The guard plate with tooth shape is newly adopted, it lengthens actural length of jaw plate, capacity is higher.
Main technical datas
Nowadays, JCE series jaw crusher of European style is explored on the base of the traditional jaw crusher. The highest antipressure strength of material to be crushed is 320 MPa. It is mainly used to crush hard and medium hard stones in stone mining, metallurgy industry, building material, highway, railway, stone industry, etc.
Working principle
The motor drives belt and belt wheel, when movable jaw plate is driven towards fixed jaw plate, material is crushed or ground. Motor drives the movable jaw up and down through eccentric shaft. The angle between toggle plate and movable jaw increases when movable jaw moves up. The stones are crushed in this process. The angle between toggle plate and movable jaw decreases when movable jaw moves down, the movable jaw move away from fixed jaw by the pulling of rode and spring, the stuff crushed will be discharged from the output opening. This process will repeat. The moving jaw will crush and discharge the stuff circularly.
1. World-level manufacturing technology is adopted, perfect raw material is selected.
2. More advanced movable jaw assembly lengthens life of JCE.
Movable jaw assembly, composed of high-quality cast steel structure, is driven by two big flying wheels which is also made from cast steel. Moreover, heavy eccentric axle is processed by forge mold. All of these make the JCE series jaw crusher extremely reliable.
3. Integral cast steel structure is adopted for bearing seat.
Integral cast steel bearing matches well with the crusher frame, at the same time, radial strength of the bearing seat is highly strengthened. However, the separate bearing seat does not have this advantage.
4. Finite element analysis technology is adopted to make the crusher more stronger.
5. Crusher chamber adopts “V”structure which could make the actual feed width complies with the nominal one.
6. Adjustment of the discharge part is more convenient.
Discharge part of JCE series jaw crusher is installed wedge block, which makes discharge more simple, safer and faster than the spacer on old style crusher.
7. Bearing with larger specification and stronger bearing capacity is used.
All JCE series jaw crusher is installed eccentric bearing which is much bigger and more reliable than the one on the same model crusher. Higher bearing capacity and effectual maze sealing lengthen bearing life.
8. The guard plate with tooth shape is newly adopted, it lengthens actural length of jaw plate, capacity is higher.
Main technical datas
Model |
JCE1302 |
JCE1003 |
JCE1303 |
JCE604 |
|
Feed Opening Size (LxW) (mm) |
1300x180 |
1000x250 |
1300x250 |
600x400 |
|
Max. Feed Size (mm) |
150 |
220 |
220 |
350 |
|
Discharge Adjustment (mm) |
10-30 |
20-40 |
70-100 |
35-85 |
|
Eccentric Shaft Speed (r/min) |
320 |
330 |
290 |
250 |
|
Capacity (t/h) |
12-35 |
15-50 |
26-85 |
15-70 |
|
Motor |
Model |
Y225M-6 |
Y225M-6 |
Y250M-6/Y280S-6 |
Y225M-6 |
Power (Kw) |
30 |
30 |
37/45 |
30 |
|
Speed (r/min) |
980 |
980 |
980 |
980 |
|
Overall Dimension (L×W×H) (mm) |
1320×2150 |
1400×1850 |
1450×2150×1175 |
1920×1460 |
|
Weight (t) |
6 |
5.6 |
6.8 |
7 |
|
