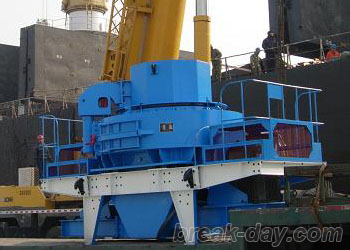

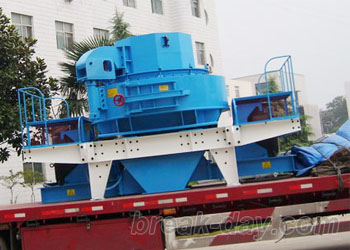

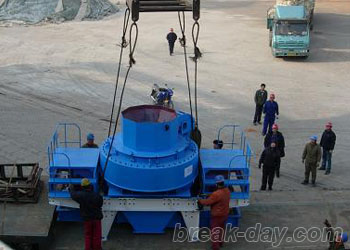

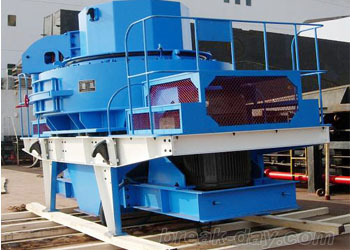

VSI Sand Making MachineVSI Sand Making Machine with international advanced technology level. VSI Sand Making Machine is widely used for artificial sand, in metal and non-metal ores, cement, refractory material, bauxite, silicon carbide, glass material, building material.
Usage:
Sand making machine is widely used in all kinds of mineral, cement, corhart, bauxite chmotte, carborundum grain, glass raw material, construction sand, stone stock and all kinds of metallurgy slag, especially carborundum, sintered bauxite, magnesite, very hard and anticorrosion materials.
Advantage:
Compared with other kind sand making machine, the new one has following advantage:
1. Advanced double-pump oil lubrication system guarante shaft bearing lower temperature increase, longer life time, more reliable operation.
2. Main shaft is equipped with imported precision rolling bearing. It makes main shaft work stable, lengthen maintenance cycle, increase productivity.
3. Hydraulic lifting mechanism of upper cover can move away the cover easily, which saves man power during maintenance.
4. Over-vibration device is equipped. There will be alarm when vibration surpasses a stipulated figure. It will stop the machine, in order to protect it.
5. Special dust-proof design for main shaft bearing fully avoid dust entering bearing lubrication part, which make sure the machine work normally.
6. Special feed opening structure make it possible that center feeding and ring feeding comes together, in order to meet requriement of different stones. In addition, this equipment can not only crush stone, but also iron.
7. Shape of material-throughing device is better designed, which improve the utilization ratio.
Service:
And we have rich experienced engineers team to guarantee the whole line install, trainning, after service, 24 hours problem resolve system.
For more details please fee free contact us and our technical will design the whole line according your requirement.
Specification:
| Model | VSI7611 | VSI8518 | VSI9526 | VSI1140 | |
| Capacity (t/h) | Center and Ring feeding | 120-180 | 200-260 | 300-380 | 450-520 |
| Center feeding | 60-90 | 100-130 | 150-190 | 225-260 | |
| Max Feed Size (mm) | Soft material | <35 | <40 | <45 | <50 |
| Hard material | <30 | <35 | <40 | <45 | |
| Rotation speed (r/min) | 1700-1890 | 1520-1690 | 1360-1510 | 1180-1310 | |
| Power for double motor (kW) | 110-150 | 180-220 | 264-320 | 400-440 | |
| Overall Dimension L×W×H (mm) | 3700×2150×2100 | 4140×2280×2425 | 4560×2447×2778 | 5000×2700×3300 | |
| Weight (t) | 7.5 | 10.5 | 14 | 16 | |
| Power Source | 380v 50Hz | ||||
| Vibrating Sensor | Inspect scope: 0.1-20mm/s adjusted continuously | ||||
| Lubrication hydraulic pressure station | Power for double oil pump | 2×0.31kW | |||
| Safety | To make sure the supply of the oil with double oil pump; stop working without oil or hydraulic pressure; temperature falls when the water cools; start the motor by heating it in winter. | ||||
| Power for oil box heater | 2 kW | ||||
Notice: Any change of Sand Making Machine technical data shall not be advised additionally.
