 High Pressure Suspension Grinder

It is based on five years resarch on the traditional grinding mill, the High pressure suspension grinding mill got national patent and CE certificate ,that with the features of high efficiency and energy saving. It is suitable for grind mineral to powder, which is widely used in the fields of metallurgy,building materials,chemical and mining industy and so on.The final product powder can reach 0.613mm(30mesh) to 0.033mm(425mesh).


1. Unique design. Compared with other grinding mills, its capacity increases by 10%-20% under the same power condition, and compression force of rollers to material improve 800-1200kgf under the force of high-pressure spring.
2. Size of final product can be 0.613mm (30mesh) –0.033mm (425mesh). And a few of material powder can reach 0.013mm (1000 mesh).
3. The dust-removing effect can fully conform to the national standard.
4. The separator can be adjusted very easily.
5. The change period of roller and ring is long.
6. The grinding equipments adopt lapping multilevel seal, which is very effective.


It can be used for girnding non-inflammable and non-explosive materials with Mon's hardness below 9.3 and moisture content below 6%, such as sand, feldspar, calcite, talc, barite, fluorspar, rare earth, marble, ceramic, aluminum vanadium earth, manganese ore, iron ore, copper ore, phosphate ore, iron oxide red, slag, granulated slag, cement clinker, active carbon, dolomite, granite, garnet, iron oxide yellow, bean cake, stone fertilizer, compound fertilizer, coal ash,soft coal,lignite, chrome oxide green , gold ore, red mud, clay, kaoline, coke, gangue, porcelain clay, kyanite, fluorte , bentonite, muddy greenstone, leaf, shale, purple sand and crushed stone, green muddy crag, basalt, gypsum, graphite, carborundum,etc.

Working Principle:

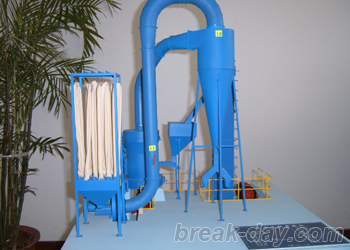

When entering grinding chamber, the raw materials are shoveled up by the shovels and are grinded between the rollers and ring; the materials after grinding are brought into the separator along with the air from the blower, and the qualified fine powder became final products and come into the cyclone powder collector, the other unqualified powder fall down to be re-grinded. The circular air returns back to the blower that the above process will be repeated, and the remaining air enters the bag filter in order to protect the circumstance.


Our sale service include Pre-Sales,During Sales,and After Sales.


Technical data:

Model Piece of roller Size of the roller (mm) Size of the ring (mm) Feed size(mm) Fineness of powder (mm) Capacity (t/h) Motor power (kW) Weight (without motor)(t)
YGM65 3 Φ210×150 Φ650×150 ≤15 0.033-0.613 0.4-1.8 15 3.6
YGM75 3 Φ260×150 Φ780×150 ≤15 0.033-0.613 1-3 18.5 4.8
YGM85 3 Φ270×150 Φ830×150 ≤20 0.033-0.613 1.2-4 22 6
YGM95 4 Φ310×170 Φ950×170 ≤25 0.033-0.613 2.1-5.6 37 11.5
YGM130 5 Φ410×210 Φ1280×210 ≤30 0.033-0.613 2.5-9.5 75 20

1. Based upon limestone-grinding with 80% pass-through;
2. The final technical data are subject to the operation manual along with the machine.

Notice: Any change of High Pressure Suspension Grinding Mill technical data shall not be advised additionally.
