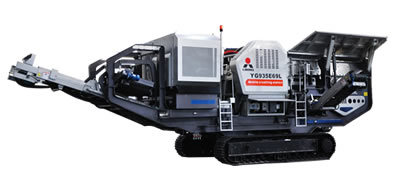

 Crawler Type Mobile Crusher

Features:

Crawler type mobile crushing & screening plant is designed and researched by our experienced engineers according to the customers' requirement. It is of high cost performance, reliable & beatiful structure. Its technology is as advanced as the internationl level. It is widely used in road & bridge construction, metallurgy and other fileds to crusher and screen.

1. Perfect performance of Cummins diesel engine. It is low consumption, low noise, reliable performace. And we can equip a military cryogenic preheat starting device, so that the crushing plant can be started to work even the temperature is bleow 25 degrees centigrade.

2. The chassis adopts crawler rigid ship form structure. It is of high intensity, easy to be transported on the different landform like mountain and marsh.

3. It adopts the motor of high-torque and strong driving force. Crawing system adopts full-power variable open hydraulic system which is of excellent performance, high reliability. It is able to make full use of engine power. The main hydraulic components (pumps, valves, etc.) is imported from Japan.

4. Controlling system adopts imported and advanced servo system. It is easy and exact to be controlled to stepless crawl.

5. The crushing & screening plant adopts our company's advanced product. Its structure is compact. The screen is installed in 20 degree angle, so the screening is highly efficient.

Main technical data:

Item unit Y2S1848L YGE69L Y2S184F00
Dimension Data Width of two pedrail mm 2990 2990 2990
Length of pedrail mm 4250 4250 4250
Distance between middle of two pedrail mm 2390 2390 2390
Width of pedrail mm 600 600 600
Transporation length mm 12500 13000 12000
Transporation width mm 3150 3150 3150
Transportation height mm 3500 3500 3600
Wokring length mm 15800 15200 13800
Working width mm 3150 3150 2900
Working height mm 4500 4900 4100
Min. ground clearance mm 320 320 320
Characters Pressure flow   28Mpaļ¼180L/Min
Max. speed km/h 1.39
Climbing slope % 30
Motor power kw 100
Rotary speed of engine rpm 2100

Note:
1. The above model is elementary mobile crushing plant;
2. We can produce the crushing & screening plant according to customers' requirement.
