Brief introduction

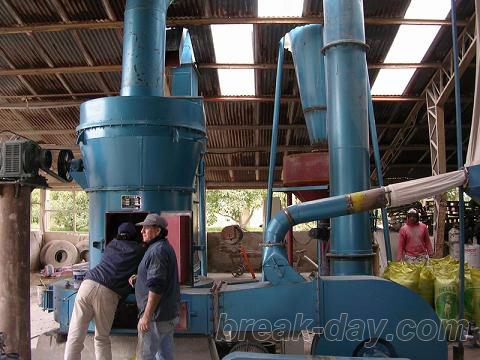

Raymond mill is widely used in the field of metallurgy, building materials, stone industry and mining to process powder. This mill is used to grind non-flammable and non-explosive material which has Moh's hardness below 9 and humidity less than 6%, such as gypsum, talc, calcite, limestone, marble, feldspar, barite, dolomite, granite, kaolin, bentonite, bauxite, iron ore, etc. the final product with size from 30 to 425 mesh can meet different customers' various requests.

Features
Small area of whole grinding plant;
Higher powder passing ratio;
Durable of whole plant;
Automatic electric control system for the whole plant;
Easy maintenance;

Working Principle
The raw material enters grinding chamber, shoveled up by the shovels and ground between the rollers and ring. After this, the ground material is carried by the air from the blower into the separator for screening, and the qualified fine powder becomes final product and comes into the cyclone powder collector, the other unqualified powder falls down to be re-ground. The circular air returns back to the blower, so the above process will be repeated, and the remaining air enters the bag filter in order to protect the circumstance.



Technical Data

Model			3R2115	3R2615	3R2715	3R3016	4R3216
Roller	Number		3	3	3	3	4
	Diameter (mm)		210	260	270	300	320
	Height (mm)		150	150	150	160	160
Ring	Inner diameter (mm)		630	780	830	880	970
	Height (mm)		150	150	150	160	160
Maximum feed size (mm)			15	15-20	15-20	15-20	20-25
Discharging size (mm)			0.044-0.165	0.044-0.165	0.044-0.165	0.044-0.165	0.044-0.165
Power of main frame (Kw)			15	18.5	22	30	37
Size of final product (mm)	0.165	capacity (t/h)	1.2-1.8	1.8-2.5	2.3-2.8	2.6-3.2	3.2-4.5
	0.075		0.6-1.2	1.2-1.8	1.8-2.3	1.9-2.6	2.4-3.1
	0.044		0.6-1.0	0.8-1.2	0.9-1.7	1-1.9	1.8-2.5
