 Cone Crusher
Brief introduction

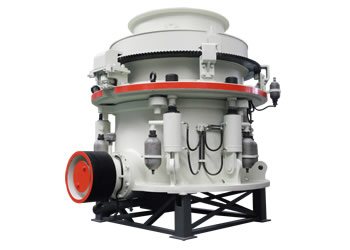

HPC series hydraulic cone crusher adopts computer optimization design to speed up main shaft speed. It is the improved type of spring cone crusher and can be used to replace ordinary hydraulic cone crusher. It is the most ideal equipment to crush hard and medium hard stones in stone mining, metallurgy industry, building material, highway, railway, stone industry, etc.







Features
Easy operation;
High crushing ratio and production efficiency;
Less spare part consumption and low operation cost;
Between-layer pressuring crushing and better finished product shape;
Hydraulic protection and hydraulic chamber clearing, high automatization and less stopping production and repairing time;
Thin oil lubrication makes the life time increased;
Various crushing chambers;

Technical Data

Type

Cavity (coarse/fine)

Min. Discharge Size (mm)

Feed Size (mm)

Capacity (t/h)

Power (Kw)

Weight (t)

Movable Cone Diameter (mm)

HPC160

C

13

150

120-240

160

13

950

F

6

76

55-180

HPC220

C

13

225

150-430

220

18

1160

F

6

86

90-260

HPC315

C

13

290

190-610

315

26

1400

F

6

100

108-320

HPC400

C

13

320

230-700

400

33

1500
