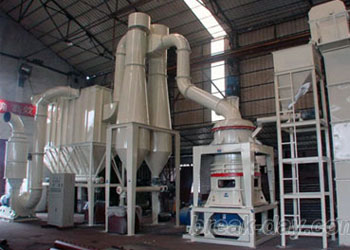

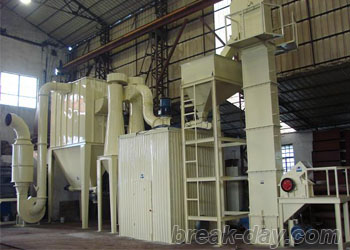

Three-rings and Medium-speed Micropowder Grinder
Brief introduction
HGM series three-ring medium speed micro-powder mill is widely used in calcite, chalk, limestone, dolomite, kaolin, bentonite, talc, mica, magnesite, illite, pyrophyllite, vermiculite, sepiolite, attapulgite, tablite, ceyssatite, barite, gypsum, alunite, black lead, fluorite, phosphate rock, potassium ore, floatstone etc. It can produce powde of various non-flammable and non-explosive mineral materials with Mohs hardness below 9 and humidity below 6%. The size of final powder can be adjusted between 325-2500 mesh.
Working Principle:
Motor drives main shaft and every turnplate through reducer. The reducer drives dozens of rollers to rotate against race way of ring through pin. Material falls to circle under the centrifugal force and comes down to raceway of ring to be crushed into powder. After ground in the first race way, the material goes to the second and third turnplate. Blower inhales external air into the mill and carries the powder after third turnplate into powder-separator. Turbine in the separator makes coarse powder drop down and ground again, and the final powder goes into cyclone powder collector together with air current and is dischargee from outlet valve, at the same time, air current with a little dust goes out through blower and muffler after purified by filter.
Features
High grinding efficiency and low operation cost;
Patent technology;
Final powder can reach ≦5μm with d97 once;
National dust removal standard;
Technical Data
HGM series three-ring medium speed micro-powder mill is widely used in calcite, chalk, limestone, dolomite, kaolin, bentonite, talc, mica, magnesite, illite, pyrophyllite, vermiculite, sepiolite, attapulgite, tablite, ceyssatite, barite, gypsum, alunite, black lead, fluorite, phosphate rock, potassium ore, floatstone etc. It can produce powde of various non-flammable and non-explosive mineral materials with Mohs hardness below 9 and humidity below 6%. The size of final powder can be adjusted between 325-2500 mesh.
Working Principle:
Motor drives main shaft and every turnplate through reducer. The reducer drives dozens of rollers to rotate against race way of ring through pin. Material falls to circle under the centrifugal force and comes down to raceway of ring to be crushed into powder. After ground in the first race way, the material goes to the second and third turnplate. Blower inhales external air into the mill and carries the powder after third turnplate into powder-separator. Turbine in the separator makes coarse powder drop down and ground again, and the final powder goes into cyclone powder collector together with air current and is dischargee from outlet valve, at the same time, air current with a little dust goes out through blower and muffler after purified by filter.
Features
High grinding efficiency and low operation cost;
Patent technology;
Final powder can reach ≦5μm with d97 once;
National dust removal standard;
Technical Data
Model |
HGM60 |
HGM80 |
HGM100 |
Roller number (pc) |
15 |
21 |
27 |
Working diameter (mm) |
Φ600 |
Φ800 |
Φ1000 |
Ring number |
3 |
3 |
3 |
Max. feeding size (mm) |
10 |
10 |
10 |
Final size (mesh) |
325-2500 |
325-2500 |
325-2500 |
Capacity (kg/h) |
350-2500 |
500-3500 |
900-6500 |
Overall dimension (mm) |
10000×2000×5500 |
12400×3500×5800 |
14500×4500×8600 |
