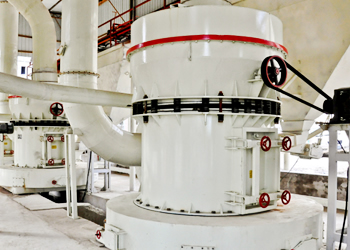

 Super Pressure Trapezium Grinding Mill

Got CE and National Patent Certificate, the latest grinding mill-------Super Pressure Trapezium Grinding Mill got good reputation with our customers from Australia, US, UK, Spanish and other countries.

Patent Technology:

Super Pressure Trapezium Mill adopts our patented technologies, which are trapezium working surface, flexible connection, roller linked pressure boost, etc.Super Pressure Trapezium Mill has reached the advanced international level of powder making equipment manufacturing.

Usage:

Super Pressure Trapezium Grinding Mill is mainly used in metallurgicl,building,chemical,mining industy.It is suitable for grind all kinds of nonflammable and nonexplosive minerals whose Moh's hardness is lower than 9 and humidity is lower than 6%.

Advantages:

Compared with the traditional grinding mill,the Super Pressure Trapezium Grinding Mill has below advantages:

1. The trapezium roller and grinding ring improve the grinding efficiency greatly. The roller and grinding ring are designed in inverted trapezium with different diameter,which reduce the slip velocity of materials between roller and grinding ring,extend grinding time,and improve the grinding efficiency.
2. With high efficient balanced adding pressure springs.Adopting the advantages of Raymond Mill and High Pressure Suspension Mill,Super Pressure Trapezium Grinder has longer service life. The roller assembly has been linked by the pulling pole and the levelled springs, with the radial force yeilding, which avoids the bulk material entering into the grinding chamber to wear down the principal axis and the the bearings, thus the service life will be longer.
3. Using flexible connection to connect main frame and powder concentrator,so the damping spring and airproof belt can reduce the vibration and noise,and avoid the resonance as well.
4. There is high desity and high precision impeller.
5. There is high-efficiency and energy-saving centrifugal induced draft fan.
6. With the impeller adjusting device brings more convenience. The clearance between housing and powder concentrator's blade front end also effects the fineness of the final product.The patent technology enables adjust the clearance more convenience.

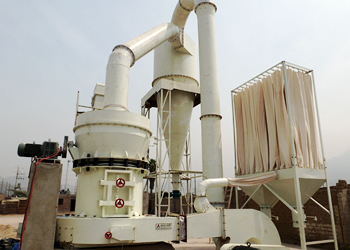

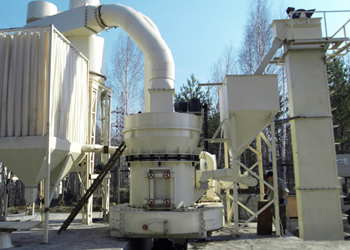

Whole Grinding Mill Line Device:

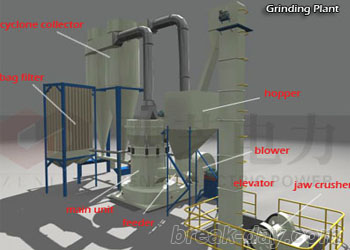

Super Pressrre Trapezium Grinding Mill is mainly consists of main frame,speed reducer,powder concentrator,induced draught fan,dust collector,piping device,integrator,and motor,etc.The whole grinding mill line include Jaw Crusher,Bucket Elevator,Mill Deceleration Machine,Vibraing Feeder,Main Frame,Blower,Powder Concentrator,Powder Collecting System,Piping Device,and Bag Deduster.

Service:

Our sale service include Pre-Sales,During Sales,and After Sales.





Specification:

Table 1


Item\Model
TGM100 TGM130 TGM160
Roller piece 4 5 6
Roller Diameter×Height(mm) Ф320×200 Ф400×240 Ф440×270
Ring Inner Diameter×Height(mm) Ф980×200 Ф1320×240 Ф1600×270
Speed Of Main frame (r/min) 130 98 82
Max. Input Size (mm) <25 <30 <35
Product Size (mm) 1.6~0.045
fineness can reach to 0.038
1.6~0.045
fineness can reach to 0.038
1.6~0.045
fineness can reach to 0.038
Capacity (t/h) 3~8 6~15 9~22
Overall Dimension (mm) 9910×5365×8310 7910×7000×9645 12550×5700×8355
Weight (t) 16 26.1 35

Note:
1. Based upon limestone-grinding with 80% pass-through;
2. The final technical data are subject to the operation manual along with the machine.

Table 2


Name
Item Unit Specifications & Technical Data
TGM100 TGM130 TGM160
Motor for main frame Model   Y225M-4 Y280S-4 Y135M1-4
Power kW 45 90 132
Rev. rpm 1480 1480 1480
Motor for separator Model   GZT2-42-4 YCT200-4B JZT2-52-4
Power kW 5.5 7.5 11
Rev rpm 125~1250 125~1250 125~1250
Motor for Elevator Model   Y100L-4 Y100L2-4 Y112M-4
Power kW 3 3 4
Rev rpm 1420 1420 1420
Motor for Blower Model   Y225S-4 Y250M-4 Y315S-4
Power kW 37 75 110
REV rpm 1480 1480 1480
Motor for Jaw Crusher Model PE 200×350 250×400 250×400 250×750
Y160M-6 Y180L-6 Y180L-6 Y200M-6
Power KW 7.5 15 15 22
REV rpm 970 970 970
Electro-Magnetic Vibrating Feeder Model   GZ1F GZ2F GZ3F
Power W 60 150 200

Note: The final technical data are subject to the operation manual along with the machine.
