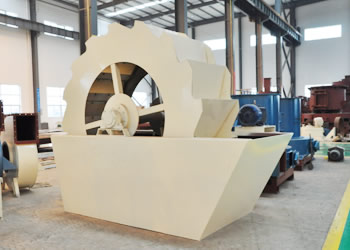

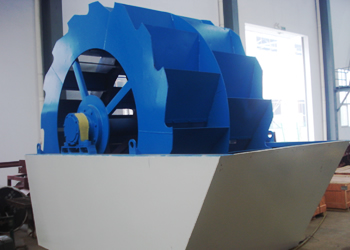

Sand Washing Machine
Sand Washing Machine is used for separate dust and mud from sand. With sealing structure and stable gearing device,its performance is exellence.
Applicate area: Sand making plant, buliding site, concrete dam building site, etc.
Advantage: low power consumption, high capacity, simple structure.
Specification of sand washing machine:
Model | Wheel Size (mm) | Max feed size (mm) | Power (kW) | Weight (t) | Capacity (t/h) | Overall dimension (mm) |
XSD2610 | Φ2600×1000 | 10 | 5.5 | 2.7 | 20-50 | 3255×1982×2690 |
XSD2816 | Φ2800×1600 | 10 | 11 | 3 | 30-60 | 3540×3000×2880 |
XSD3016 | Φ3000×1600 | 10 | 15 | 3.3 | 50-100 | 3845×3000×3080 |
Notice: Any change of Sand Washing Machine technical data shall not be advised additionally.
