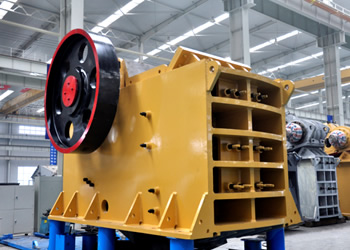

 Jaw Crusher
Brief introduction
Jaw Crusher is widely used to crush various large stones, limestone, granite, basalt, river gravel, etc. The highest antipressure strength of material to be crushed is 320MPa. The jaw crusher is mainly used to crush hard and medium hard stones in stone mining, metallurgy industry, building material, highway, railway, stone industry, etc.

Working Principle
The motor drives pulley, making the movable jaw do periodic movement through eccentric shaft. The angle between toggle plate and movable jaw increases when movable jaw moves up. So the movable jaw moves to the fixed jaw. The stones are crushed in this process. The angle between toggle plate and movable jaw decreases when movable jaw moves down, the movable jaw moves away from fixed jaw by the pulling of rod and spring, the crushed stones are discharged from the outlet.

Features
High ratio of crushing;
Homogeneous final product size;
Simple structure;
Reliable working condition;
Easy maintenance;
Low operating cost;
Little noise and dust;
Safe and reliable lubrication;





Technical Data

Model

Max. Feed
Size (mm)

Discharge Size (mm)

Capacity
(t/h)

Power (Kw)

Weight
(t)

Overall Dimensions
(mm)

PE150×250

125

10-40

1-3

5.5

0.8

896×745×935

PE200x350

150

15-50

4-10

7.5

1.2

1100x1200x1190

PE250×400

200

20-60

5-20

15

2.8

1150×1275×1240

PE400×600

350

40-100

15-60

30

6.5

1700×1732×1653

PE500×750

425

50-100

50-100

55

10.3

2035×1921×2000

PE600×900

  480

65-160

60-130

75

16.5

2290×2206×2370

PE750×1060

630

80-140

80-180

110

29

2620×2302×3110

PE900×1200

750

95-165

140-260

110

54

3789×2826×3025

PE1000x1200

850

195-265

315-550

110

57

3335x3182x3025

PE1200x1500

1000

150-300

400-800

160

88

4200x3750x3820

PEX150×750

120

10-40

8-30

15

3.5

1380×1658×1200

PEX250×750

210

25-60

10-40

22

5

1667×1545×1025

PEX250×1000

210

25-60

15-50

30

6.5

1550×1964×1380

PEX250×1200

210

25-60

20-60

37

7.7

1560×2104×1415
